Optical cable armored with steel wire, modular design.
Crushing force from 400 N/cm
Tensile force up to 80 kN
Operating temperature from -40°С to +70°С Arctic version from -60°С to +70°С Installation: up to -30°С
For any climatic zones
Fire-safe
Rodent protection

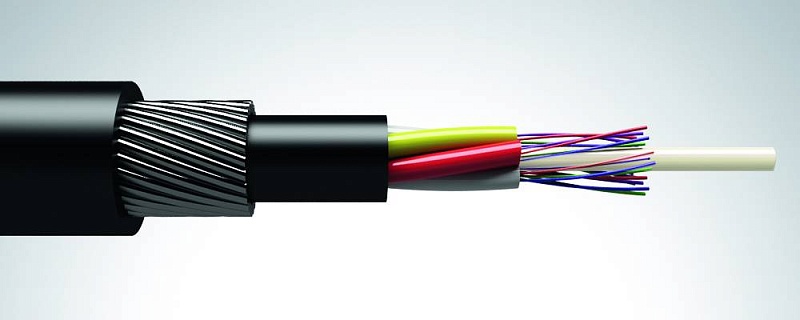

Construction
1. Central strength member - FRP rod, steel strand or steel wire in PE sheath.
2. Optical fiber.
3. Tube.
4. Intermediate PE sheath.
5. Gel filler.
6. Round steel wire.
7. Outer PE sheath.
Specifications
| Number of OF in a cable | Number of OF in a tube | Nominal calculated cable diameter, mm | Calciulated cable weight, kg / km | Tensile force, kN | Min.radius of cable bending, mm |
| OKGM(n)-01-1х4...12х24...-(7,0) | |||||
|---|---|---|---|---|---|
| Up to 48 | Up to 12 | 12,2 | Up to 258 | 7,0 | 244 |
| Up to 64 | Up to 8 | 13,6 | Up to 321 | 272 | |
| Up to 96 | Up to 12 | 15,9 | Up to 477 | 318 | |
| Up to 144 | Up to 12 | 19,5 | Up to 756 | 390 | |
| Up to 288 | Up to 24 | 26,9 | Up to 1449 | 538 | |
| OKGM(n)-02-1х4...12х24...-(7,0) | |||||
| Up to 64 | Up to 8 | 13,6 | Up to 326 | 7,0 | 272 |
| Up to96 | Up to 12 | 15,2 | Up to 393 | 304 | |
| Up to 144 | Up to 12 | 17,9 | Up to 358 | ||
| Up to 288 | Up to 24 | 26,9 | Up to 1453 | 538 | |
| OKGM-01-1х4...12х12...-(20,0) | |||||
| Up to 48 | Up to12 | 14,8 | Up to 357 | 20,0 | 296 |
| Up to 64 | Up to 8 | 16,3 | Up to 487 | 326 | |
| Up to 96 | Up to 12 | 17,8 | Up to 564 | 356 | |
| Up to144 | Up to 12 | 21,3 | Up to 850 | 426 | |
| OKGM-01-1х4...12х12...-(80,0) | |||||
| Up to 64 | Up to 8 | 21,5 | Up to 905 | 80,0 | 430 |
| Up to 96 | Up to 12 | 23,3 | Up to 980 | 466 | |
Применение
The cable is designed for direct bury, in cable channels, pipes, blocks, collectors, tunnels, shafts, in water when crossing swamps, lakes, and rivers.
