Unarmoured optical cable, modular design.
Crushing force from 300 N/cm
Tensile force up to 3 kN
Operating temperature from -40°С to +70°С Installation: up to -10°С
Fire-safe
Rodent protection

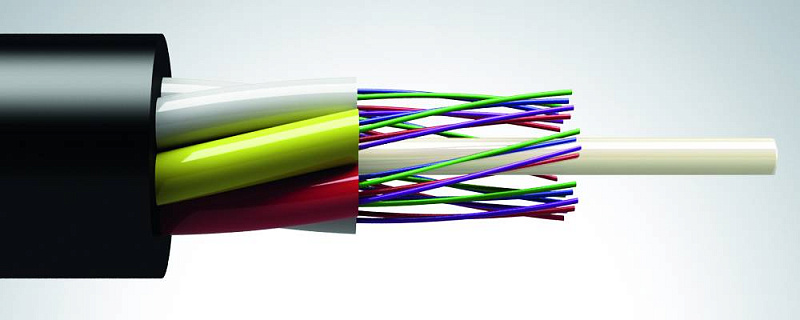

1.Central strength member - FRP rod, steel strand or steel wire in PE sheath (or without it).
2.Optical fiber.
3.Tube.
4.Water-blocking material.
5.Outer PE sheath.
|
Number of OF in a cable |
Number of OF in a tube |
Nominal calculated cable diameter, mm |
Calciulated cable weight, kg / km |
Tensile force, kN |
Min.radius of cable bending, mm |
|
OKTM(n)-01-1х4...16x36...-(1,0-2,7) |
|||||
|---|---|---|---|---|---|
|
Up to 24 |
Up to 4 |
10,0 |
Up to 80 |
1,0-2,7 |
200 |
|
Up to 48 |
Up to 8 |
10,0 |
Up to 81 |
200 |
|
|
Up to 72 |
Up to 12 |
10,0 |
Up to 81 |
200 |
|
|
Up to 96 |
Up to 12 |
11,2 |
Up to 101 |
224 |
|
|
Up to 144 |
Up to 12 |
13,8 |
Up to 151 |
276 |
|
|
Up to 288 |
Up to 24 |
19,7 |
Up to 315 |
394 |
|
|
Up to 576 |
Up to 36 |
22,6 |
Up to 437 |
452 |
|
|
OKTM(n)-02-1х4...16x36...-( 2,7) |
|||||
|
Up to 24 |
Up to 4 |
10,6 |
Up to 93 |
2,7 |
212 |
|
Up to 48 |
Up to 8 |
10,6 |
Up to 93 |
212 |
|
|
Up to 72 |
Up to 12 |
10,6 |
Up to 94 |
212 |
|
|
Up to 96 |
Up to 12 |
11,2 |
Up to 105 |
2,7 |
224 |
|
Up to 144 |
Up to 12 |
13,8 |
Up to 155 |
276 |
|
|
Up to 288 |
Up to 24 |
19,7 |
Up to 319 |
394 |
|
|
Up to 576 |
Up to 36 |
22,6 |
Up to447 |
452 |
|
