KSPP OKGM

Composite optical cable with copper conductors, armored with steel wire, modular design.

Key features

Crushing force from 400 N/cm

Tensile force up to 80 kN

Operating temperature from -40°С to +70°С Installation: up to -30°С

For any climatic zones

Fire-safe

Rodent protection

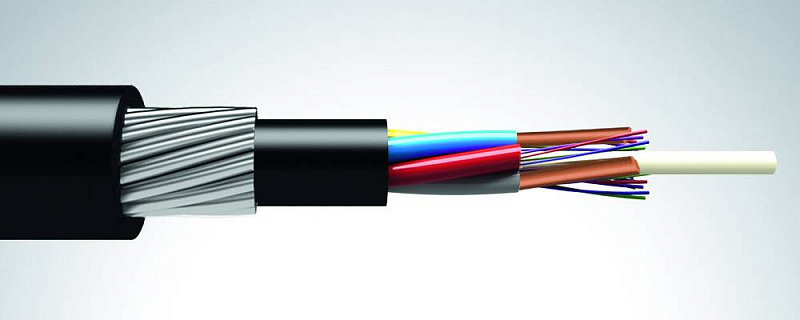

Construction

1.Central strength member - FRP rod in PE sheath.
2.Insulated copper conductor.
3.Optical fiber.
4.Tube.
5.Laminated aluminum PE tape.
6.Water-blocking material.
7.Intermediate PE sheath.
8.Round steel wire.
9.Outer PE sheath.

Specifications

Custom design is available.

KSPP OKGM(n)-4Мх0,9/01-1х4…4х24…-(7,0)
Number of optical fibers in a cable	Number of optical fibers in a tube	Nominal calculated cable diameter, mm	Calculated cable weight, kg / km	Tensile force, kN	Min.radius of cable bending, mm
Up to 48	Up to 12	15,6	Up to 459	7,0	312
Up to 96	Up to 24	20,3	Up to 682	406	312
KSPP OKGM(n)-4Мх1,2/01-1х4…4х24…-(7,0)
Up to 48	Up to 12	18,1	Up to 603	7,0	362
Up to 96	Up to 24	20,3	Up to 693	406	362

Применение

The cable is designed for direct bury, in cable channels, pipes, blocks, collectors, tunnels, in shafts, in water when crossing swamps, lakes, and rivers.
