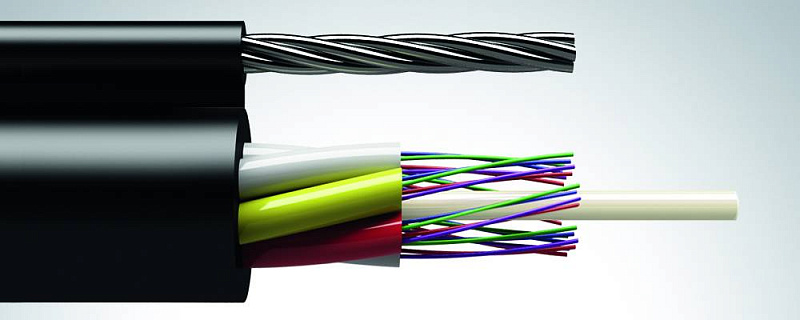

Suspension optical cable with integrated messenger, modular design.

1.Outer strength member (messenger) - FRP rod, steel strand or steel wire.
2.Central strength member - FRP rod, steel strand or steel wire in PE sheath (or without it).
3.Optical fiber.
4.Tube.
5.Water-blocking material.
6.Outer PE sheath.
Number of optical fibers in a cable |
Number of optical fibers in a tube |
Cable dimensions/Outer strength member diameter,mm |
Calculated cable weight, kg / km |
Tensile force, kN |
Min. radius of cable bending,mm |
OKPM-02-1х4...12х24...-(4,0) |
|||||
---|---|---|---|---|---|
Up to 24 |
Up to 6 |
9,5х17,2/4,2 |
Up to 115 |
4,0 |
190 |
Up to 32 |
Up to 8 |
10,3х18,0/4,2 |
Up to 127 |
206 |
|
Up to 48 |
Up to 12 |
10,7х18,4/4,2 |
Up to 133 |
214 |
|
Up to 72 |
Up to 12 |
11,5х19,2/4,2 |
Up to 152 |
230 |
|
Up to 96 |
Up to 12 |
13,2х20,9/4,2 |
Up to 184 |
264 |
|
Up to 144 |
Up to 12 |
16,5х24,2/4,2 |
Up to 258 |
330 |
|
OKPM-02-1х4...12х24...-(9,0) |
|||||
Up to 24 |
Up to 6 |
9,5х19,5/6,5 |
Up to 165 |
9,0 |
190 |
Up to 32 |
Up to 8 |
10,3х20,3/6,5 |
Up to 176 |
206 |
|
Up to 48 |
Up to 12 |
10,7х20,7/6,5 |
Up to 183 |
214 |
|
Up to 72 |
Up to 12 |
11,5х21,5/6,5 |
Up to 202 |
230 |
|
Up to 96 |
Up to 12 |
13,2х23,2/6,5 |
Up to 233 |
264 |
|
Up to 144 |
Up to 12 |
16,5х26,5/6,5 |
Up to 308 |
330 |
|
OKPM-02-1х4...12х24...-(12,0) |
|||||
Up to 24 |
Up to 6 |
9,5х19,5/6,5 |
Up to 199 |
12,0 |
190 |
Up to 32 |
Up to 8 |
10,3х20,5/6,5 |
Up to 209 |
206 |
|
Up to 48 |
Up to 12 |
10,7х20,7/6,5 |
Up to 216 |
214 |
|
Up to 72 |
Up to12 |
11,5х21,5/6,5 |
Up to 234 |
230 |
|
Up to 96 |
Up to 12 |
13,2х23,2/6,5 |
Up to 266 |
264 |
|
Up to 144 |
Up to 12 |
16,5х26,5/6,5 |
Up to 341 |
330 |
Custom design is available.
