Suspension optical cable flat
Crushing force from 300 N/cm
Tensile force up to 7 kN
Operating temperature from -60°С to +70°С Installation: up to -30°С
For any climatic zones
100% dielectric

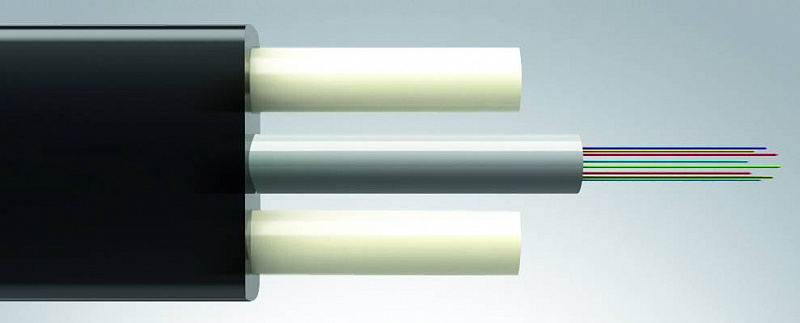

Construction
1.Optical fiber.
2.Gel filler inside the tube.
3.Central tube.
4.Strength member in the form of FRP rods.
5.Outer PE sheath.
Specifications
|
Number of optical fibers in a cable |
Cable dimensions,mm |
Calculated cable weight,kg/km |
Tensile force,kN |
Min.radius of cable bending,mm |
|
OKPP-01-1х4...1х24…-(1,2) |
||||
|---|---|---|---|---|
|
4 |
3,4х6,8 |
Up to 28,2 |
1,2 |
68 |
|
8 |
3,4х6,8 |
Up to 28,2 |
68 |
|
|
12 |
3,7х7,8 |
Up to 34,6 |
74 |
|
|
16 |
4,0х8,4 |
Up to 42,0 |
80 |
|
|
24 |
4,2х9,4 |
Up to 47,4 |
86 |
|
Custom design is available.
Применение
The cable is designed for overhead suspension and service on supports of aerial communication lines, street light poles, contact networks of town electric transport, overhead supports of radio transmitting network, between buildings and structures. It can be installed inside buildings, in cable channels, along buildings fronts.
