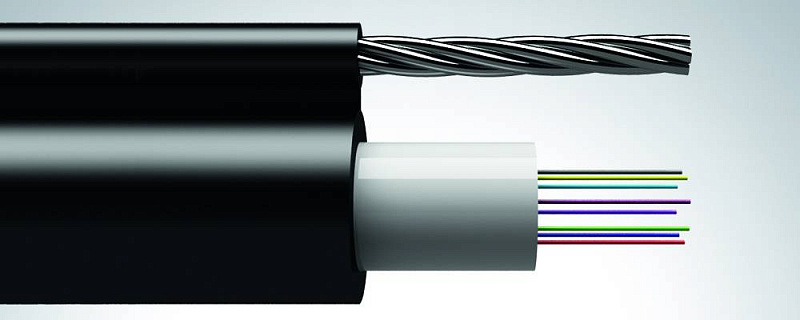

Suspension optical cable with integrated messenger
Crushing force from 300 N/cm
Tensile force up to 12 kN
Operating temperature from -60°С to +70°С Installation: up to -30°С
For any climatic zones
1.Outer strength member - FRP rod, steel strand or steel wire.
2.Optical fiber.
3.Central tube.
4.Water-blocking material.
5.Outer PE sheath.
|
Number of optical fibers in a cable |
Cable dimensions/Outer strength member diameter,mm |
Calculated cable weight, kg / km |
Tensile force, kN |
Min. radius of cable bending,mm |
|
|
OKPTS-02-1х4...1х48...-(4,0) |
|||||
|---|---|---|---|---|---|
|
Up to 24 |
5,7х11,9/4,2 |
Up to 65 |
4,0 |
114 |
|
|
Up to 48 |
6,8х13,0/4,2 |
Up to 76 |
136 |
||
|
OKPTS-02-1х4...1х48...-(6,0) |
|||||
|
Up to 24 |
5,7х12,5/4,8 |
Up to 83 |
6,0 |
114 |
|
|
Up to 48 |
6,8х13,6/4,8 |
Up to 93 |
136 |
||
|
OKPTS-02-1х4...1х48...-(9,0) |
|||||
|
Up to 24 |
5,7х13,1/5,4 |
Up to 105 |
9,0 |
114 |
|
|
Up to 48 |
6,8х14,2/5,4 |
Up to 115 |
136 |
||
Custom design is available.
