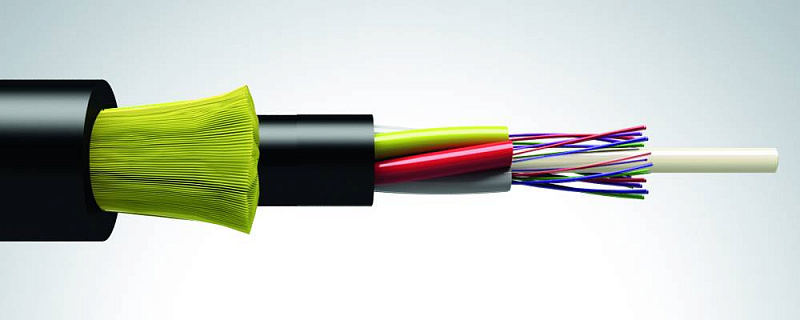

Self-supporting dielectric optical cable, modular design.

1.Central strength member – FRP rod.
2.Optical fiber.
3.Tube.
4.Water-blocking material.
5.Inner PE sheath (it may be not available on cable with tensile force less than 10 kN).
6.Strength member – aramid filament.
7.Outer PE sheath
Number of optical fibers in a cable |
Number of optical fibers in a tube |
Nominal calculated cable diameter, mm |
Calculated cable weight, kg / km |
Tensile force, kN |
Min.radius of cable bending,mm |
OKSM-01-1х4...12х24...-(6,0) without inner sheath |
|||||
---|---|---|---|---|---|
Up to 24 |
Up to 4 |
10,6 |
Up to 87 |
6,0 |
212 |
Up to 48 |
Up to 8 |
11,7 |
Up to 105 |
234 |
|
Up to 64 |
Up to 8 |
13,2 |
Up to 132 |
264 |
|
Up to 72 |
Up to 12 |
12,3 |
Up to 115 |
246 |
|
Up to 96 |
Up to 12 |
13,9 |
Up to 145 |
278 |
|
Up to 144 |
Up to 12 |
17,1 |
Up to 220 |
342 |
|
OKSM-01-1х4...12х24...-(8,0) without inner sheath |
|||||
Up to 24 |
Up to 4 |
10,8 |
Up to 90 |
8,0 |
216 |
Up to 48 |
Up to 8 |
11,8 |
Up to 107 |
236 |
|
Up to 64 |
Up to 8 |
13,3 |
Up to 134 |
266 |
|
Up to 72 |
Up to 12 |
12,4 |
Up to 118 |
248 |
|
Up to 96 |
Up to 12 |
14,0 |
Up to 148 |
280 |
|
Up to 144 |
Up to 12 |
17,2 |
Up to 222 |
344 |
|
OKSM-01-1х4...12х24...-(10,0) without inner sheath |
|||||
Up to 24 |
Up to 4 |
11,0 |
Up to 93 |
10,0 |
220 |
Up to 48 |
Up to 8 |
12,0 |
Up to 110 |
240 |
|
Up to 64 |
Up to 8 |
13,5 |
Up to137 |
270 |
|
Up to 72 |
Up to 12 |
12,5 |
Up to 120 |
250 |
|
Up to 96 |
Up to 12 |
14,1 |
Up to 150 |
282 |
|
Up to 144 |
Up to 12 |
17,3 |
Up to 224 |
346 |
Custom design is available.
